The LOCTITE® Electric Rotorspray is an ID Bore Coating System used to apply LOCTITE® products to interior cylindrical surfaces. The special design of the drive assembly and rotor housing means the Rotorspray is completely sealed: no adhesive contamination here. It integrates directly with LOCTITE valves and controllers, and it comes complete with integrated rotor speed control, error check, and overload shut-off.
Good to know:The LOCTITE Electric Rotorspray can dispense low to medium viscosity anaerobic adhesives.
Rotary spray applies LOCTITE adhesives to interior cylindrical surfaces
Integrates directly with LOCTITE valves and controllers
Multiple spinners available for variety of applications (10mm, 15mm, 25mm diameter and custom sizes)
Quick-stop feature eliminates overspray
OurGuarantee
Henkel Authorized Brands
100% Original Products
Secure Payments
100% Buyer Protection
More Information
More Information
Use Before from Manufacturing Date (In Days)
Upto 2 Years without consumables
Consumables
Required
Technology
Manual/Pneumatic/Hydrolic
Type of Product
Benchtop/Hand held/Bottle Mounted
Product Technology
Anaerobic
Reviews
Features and Benefits
Prevents loosening and leakage from shock & vibration: It fills all gaps between the mating threads
and cures into a hard thermoset plastic that strengthens the assembly against shocks and seals the
threads.
High viscosity product: The high viscosity of the product makes it ideal for applications where
migration of adhesive must be prevented.
Fluorescent: It has a characteristic red colour that fluoresces under UV light. This helps during
service to detect as to whether or not the product had been applied.
It has a fixture time on steel of 30 minutes, brass for 25 minutes and stainless steel for 270 minutes.
Localized heat may be required to weaken the bonds before disassembly.
Additional Spare Parts / Accessories

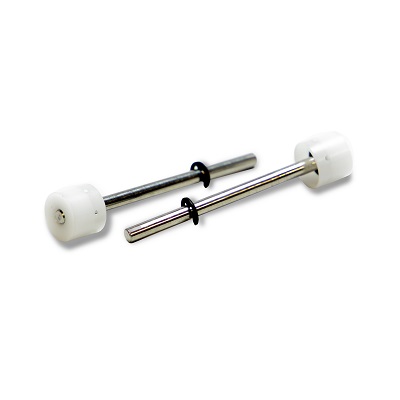

IDG: 195868
Name: Rotor disc - 10 mm dia
Pack of: 2
IDH: 529524
Name: Rotor disc - 15 mm dia
Pack of: 2
IDH: 195870
Name: Rotor disc - 25 mm dia
Packof: 2
FAQs
Which products can the equipment be used with?
Anaerobic Technology, Cyanoacrylates, UV Adhesives can be dispensed.
Will any training be required to use the equipment?
Yes, basic training will be needed; our team will provide it.
What is the life cycle and warranty terms of the equipment?
We provide warranty of one year but life cycle of Henkel Equipment is more than 3 years.
How often will I need to change the spare parts?
It depends upon Equipment usage (in general after 1 year)
Can I use one equipment for different applications?
Yes but after complete cleaning.
Does it require any set up, if yes then how long will it take to set up the equipment?
No, Equipment is supplied with all necessary items. If you need to automate it completely then it will be done separately.
