LOCTITE® RC50 Integrated Dispenser

The LOCTITE^® RC50 Integrated Dispenser is an automatic dispenser machine with independent digital timing channels, which means that you can control two pneumatic outputs at the same time. These outputs can be used to control dispense valves or any LOCTITE^® automatic dispense valve or pneumatic handheld applicator.

It has two operating modes: timed or continuous, perfect for dot or bead dispensing applications. The reservoir can handle 250ml, 500g, 1 liter, 2kg and 200g adhesive packages, and the dispenser is suitable for either manual workstations or automated production lines. The dispenser is Industry 4.0 compatible, providing enhanced communication/connectivity via Ethernet, Bluetooth, or Wi-Fi.

Good to know:

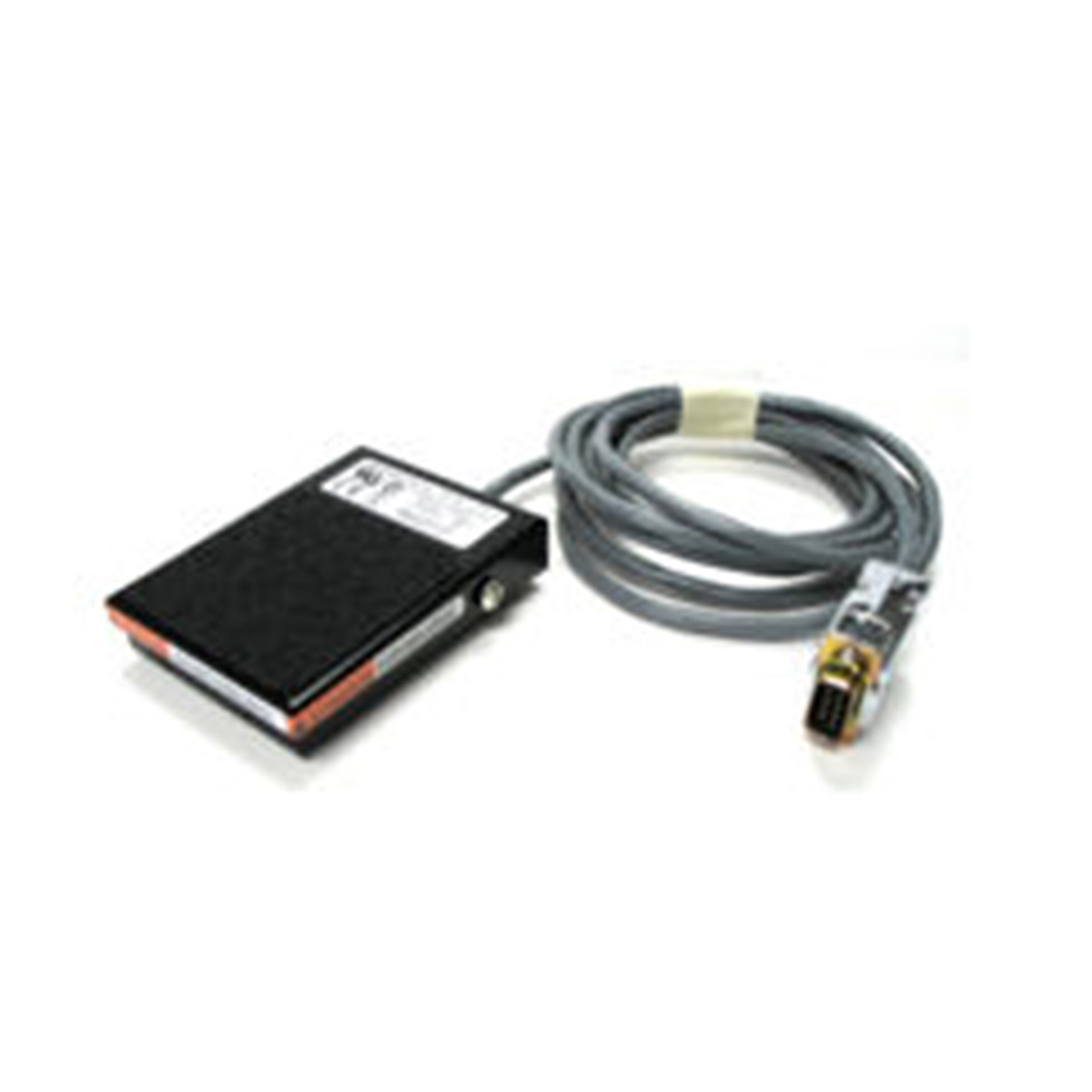

- Activate the controller by either the start/stop button on the touch panel, a foot switch (included), or an external start signal.
- Equipped with a 0-7 bar (0-100 psi) digital pressure regulator for adjusting output pressure to the viscosity of the adhesive.
